Navigating the world of RF connectors and filters requires a deep understanding of their technical specifications and applications. These components play a critical role in controlling electromagnetic interference (EMI) and ensuring optimal performance in various electrical systems.
In this article, we will explore the different types of RF connectors, including N, UHF, TNC, BNC, and SMA, along with their specific applications and frequency ranges. We will also delve into the role of RF filter manufacturers and the various filter types available to eliminate EM and RF noise. By gaining insights into these aspects, readers can make informed decisions when selecting connectors and filters for their specific needs.
Understanding RF Connectors
RF connectors are essential components that enable the transfer of high-frequency signals between different electronic devices while maintaining proper impedance matching. Their primary function is to establish a secure connection while minimizing signal loss and controlling EMI.

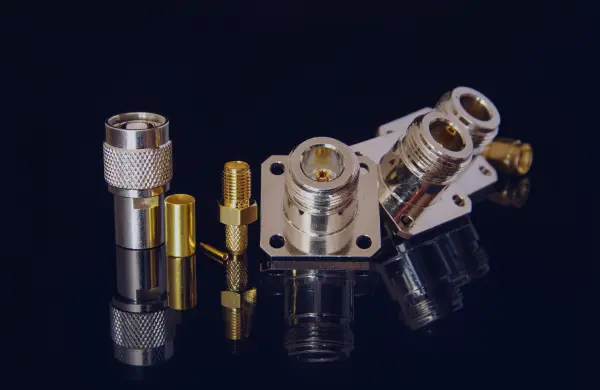

Here are some common types of RF connectors
N Connectors: N connectors are threaded, weatherproof connectors capable of handling frequencies up to 11 GHz. They are commonly used in radar systems, wireless infrastructure applications, telecommunications equipment, and test instruments where ruggedness and low cost are required.
UHF Connectors: UHF connectors are threaded RF connectors that carry signals up to 100 MHz. They find application in amateur radio, Citizens band radio (CB), marine VHF radio applications.
TNC Connectors: TNC connectors are threaded versions of BNC (Bayonet Neill-Concelman) connectors with better performance at microwave frequencies. They are commonly used in radio frequency applications such as antennas, wired communications systems, and avionics.
BNC Connectors: BNC connectors are miniature quick connect/disconnect RF connectors widely accepted in low-frequency applications. They are commonly used in composite video, Ethernet, and RF applications up to 2 GHz.
SMA Connectors: SMA connectors (SubMiniature version A) are semi-precision coaxial RF connectors that operate up to 18 GHz (some versions up to 26.5 GHz). They find application in RF power amplifiers, microwave systems, mobile telephone antennas, and radio astronomy.
Understanding the specific applications and frequency ranges of each connector type is crucial when selecting the appropriate connector for a particular system.
Exploring the Role of RF Filter Manufacturers
RF filters are critical components in eliminating electromagnetic (EM) and radio frequency (RF) noise from electrical systems. They help maintain signal integrity by shunting unwanted energy to grounded enclosures while allowing desired data signals to pass through.
There are different types of RF filters available:
- C Filters: C filters, also known as pure capacitive filters, consist of a single decoupling capacitor from the signal line to ground. They provide basic noise filtering but have limited effectiveness at higher frequencies.
- CL/LC Filters: CL or LC filters combine inductance and capacitance filtering techniques. They include an additional inductor or “choke” coupled with a decoupling capacitor, enhancing both the effectiveness of the capacitor and impedance-based filtering.
- Pi Filters: Pi filters consist of two decoupling capacitors separated by an inductor. This configuration traps target noise effectively and provides superior higher frequency filtering performance compared to C filters or CL/LC filters.
When selecting an appropriate filter for a specific noise frequency range, it is essential to consider factors such as filter type, capacitance value, and impedance requirements based on the system’s needs.
Factors Affecting Shielding Effectiveness
Shielding effectiveness plays a crucial role in controlling EMI within electrical systems. Several factors influence shielding effectiveness, including shield material thickness, conductivity, continuity, and grounding quality.
Here are the key factors affecting shielding effectiveness:
- Shield Material Thickness: The thickness of the shield material directly impacts its ability to block or attenuate electromagnetic waves. Thicker shielding materials provide higher levels of attenuation.
- Shield Material Conductivity: Highly conductive materials, such as copper or aluminum, offer better shielding effectiveness as they can reflect or absorb electromagnetic waves more efficiently.
- Shield Continuity: Ensuring uninterrupted coverage of the shielded enclosure is crucial to prevent any gaps that may allow electromagnetic waves to leak through.
- Grounding Quality: Proper grounding of shields helps divert unwanted currents and noise to earth ground, enhancing overall shielding performance.
Physical gaps or openings in shielding material can significantly compromise shielding effectiveness by allowing noise leakage or re-reflection of energy within an enclosure. Filtering options are employed to address vulnerabilities in shielded enclosures and minimize potential interference issues.
Technical Considerations in Choosing RF Connectors
When selecting RF connectors for specific applications, several technical considerations must be taken into account. Key technical considerations include:
- Frequency Range: Different connector types have specific frequency ranges they can handle effectively. Understanding the frequency requirements of the system is crucial for selecting the right connector.
- Shape and Size Compatibility: Connectors should be selected based on their compatibility with other components or systems within the application. Factors such as space constraints and mechanical design requirements need to be considered.
- Compatibility with Other Components/Systems: It’s essential to ensure that the chosen connector is compatible with other components or systems it will be connected to in terms of impedance matching and signal integrity requirements.
Working with reliable suppliers or distributors specializing in RF connectors from reputable manufacturers is crucial for obtaining high-quality connectors that meet specific technical requirements while ensuring compatibility with other components/systems.
Ensuring Optimal Performance with Chip Capacitor Filters
Chip capacitor filters are commonly used in various electronic systems for EMI suppression. However, it’s important to consider some specific factors to ensure optimal performance. Considerations include:
- Behavior of Chip Capacitor Filters: Chip capacitor filters behave more like “notch” filters due to self-resonance. They have limited high-frequency performance compared to ideal capacitors but can be suitable for certain applications with minimal high-frequency requirements.
- Self-Resonance and High-Frequency Performance: The self-resonance frequency of chip capacitors needs to be considered to ensure that it does not interfere or coincide with the desired frequency range of the system.
- Impact of Mechanical Packaging and Circuit Layout: Mechanical packaging and circuit layout play a significant role in chip capacitor filter performance. Careful design considerations should be made to minimize equivalent series inductance and optimize filtering performance.
By understanding these considerations, businesses can select appropriate chip capacitor filters that meet their specific EMI suppression requirements while ensuring optimal system performance.
Final Words
To navigate the world of RF connectors and filters successfully, it is crucial to understand the different connector types, their applications, and frequency ranges they can handle effectively. Additionally, knowledge about various filter types, such as C filters, CL/LC filters, and Pi filters, helps in selecting the appropriate filter based on noise frequency range requirements.
Shielding effectiveness depends on factors such as shield material thickness, conductivity, continuity, and grounding quality. Proper technical considerations when choosing RF connectors include assessing frequency range compatibility and ensuring compatibility with other components/systems. By considering these key aspects, businesses can make informed decisions when selecting RF connectors and filters for optimal system performance.
When it comes to RF connectors and filters, Zetwerk is a leading reliable precision manufacturers. Explore the Zetwerk Knowledge Hub for more in-depth articles on manufacturing processes, procurement, and industry insights.
FAQs
C filters consist of a decoupling capacitor from the signal line to ground. CL/LC filters combine an inductor or “choke” with a decoupling capacitor for improved filtering. Pi filters consist of two decoupling capacitors separated by an inductor for superior higher frequency performance.
When selecting an RF connector, consider factors such as frequency range, shape, size, and compatibility with other components/systems. Consult reputable rf connector manufacturers or distributors to ensure you choose the right connector for your specific application needs.
Chip capacitor filters behave more like “notch” filters due to self-resonance but are suitable for some applications with minimal high-frequency performance compared to ideal capacitors. Careful mechanical packaging and circuit layout design considerations help optimize chip capacitor filter performance.
Working with reliable suppliers of RF connectors ensures quality products that meet specific application requirements. Reputable rf connector manufacturers or distributors offer expertise, support, and compatibility assurance for optimal performance and seamless integration within systems.
