Elevator manufacturing is a complex process that involves various components to ensure the safe and efficient operation of elevators. These components, manufactured by specialized elevator parts manufacturers, play a crucial role in maintaining structural stability, enhancing passenger comfort, and ensuring safety measures are in place. For businesses procuring or using these precision manufactured products, it is essential to have advanced knowledge of elevator components to ensure reliability and efficiency. In this article, we will delve into the different components involved in elevator manufacturing, providing industry professionals with practical insights and in-depth knowledge.
Different Components of Elevator
There are several key components used in a elevator. Some of the major components are discussed below.
Elevator Car Components
The elevator car is at the heart of any elevator system, responsible for transporting passengers or goods between different levels. It consists of several key components that work together to ensure structural stability and safety.
- Car Sling: The car sling acts as a load carrier within the elevator system, isolating vibrations during operation. It can be of two main types – suspension (1-1) and (2-1), with or without a braking system.
- Upper Transom: The upper transom serves as a support element within the car structure, holding roller guides or sliding shoes. It also includes braking system catch clamps for added safety.
Zetwerk provides high-quality Precision Components and all secondary operations.
Submit the relevant part drawings, 3D files, and other information by clicking on the button below.
- Lower Transom: Acting as the flooring carrier of the car, the lower transom incorporates pressure springs for isolation purposes. The presence of safety gear catch clamps and a shearing linkage system further enhances safety.
- Side Frame: The side frame connects the lower and upper transoms, providing structural stability to the elevator car. It ensures that all components are properly aligned and securely held together.
- Elevator Cabinet: The elevator cabinet encompasses ceiling, walls, and floors that cover the interior space of the car except for emergency trap doors, car doors, and ventilation apertures. It provides a finished look to the elevator car and ensures passenger safety.
Mechanical Accessories
Several mechanical accessories play a crucial role in the smooth operation of an elevator system, including doors and door operators, as well as guide shoes.
- Car Door and Door Operator: Elevators can have different types of doors, such as single slide, two-speed side opening, single-speed center opening, or two-speed center opening doors. These doors are operated by specialized door operators that ensure smooth and reliable functioning.
- Guide Shoes: Guide shoes are essential components that guide and balance the elevator car along guide rails within the hoist way. They prevent any lateral movement of the car during travel, ensuring a safe and smooth ride for passengers.

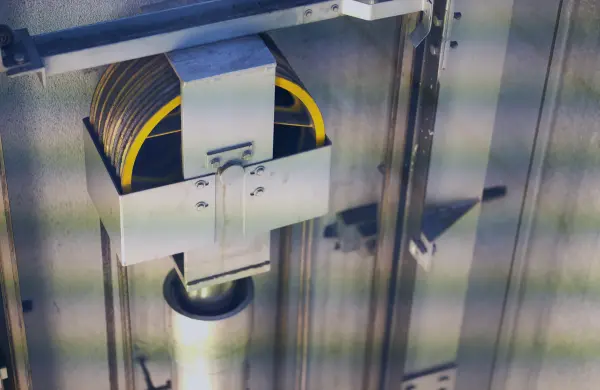

Traction System
The traction system is responsible for providing motion to the elevator car through hoist ropes. It comprises key components such as the traction machine and car cables (ropes).
- Traction Machine: The traction machine consists of a motor, drive sheave, brake, and machine bed plate. The motor turns the drive sheave which moves the car through hoist ropes based on the desired direction of travel.
- Car Cables (Ropes): Car cables or ropes provide support to elevate and lower the elevator car within the hoistway. The number of lays or strands in these cables depends on factors like load capacity and speed requirements.
Control System
The control system plays a vital role in regulating elevator operation and ensuring efficient performance.
- Elevator Controller: The elevator controller is responsible for controlling various functions within an elevator system, whether manual or automatic. It regulates the voltage supply to different components and fixtures, ensuring proper coordination.
- Drive Unit: The drive unit, powered by Variable Voltage Variable Frequency (VVVF) drives, provides motion control within the elevator system. By regulating the electricity supplied to various components, it enables smooth acceleration and deceleration, contributing to passenger comfort and energy efficiency.
Safety Systems
Safety systems are crucial in preventing accidents or major failures within elevator systems. They include safety brakes and safety devices that ensure passenger protection during emergencies or speed limit violations.
- Safety Brake: In case of cable failure or other emergencies, safety brakes engage with metal teeth embedded in guide rails to prevent the elevator car from crashing to the ground. These brakes provide an additional layer of protection for passengers.
Safety Device: Safety devices are designed to protect passengers and goods during emergencies or when speed limits are exceeded. They monitor various parameters such as overspeed, leveling accuracy, door operation, etc., triggering appropriate actions to maintain safety.
Final Words
The components used in elevator manufacturing play a vital role in ensuring the safe and efficient operation of elevators. From structural stability to passenger comfort and safety measures, each component contributes to the overall performance of an elevator system. It is crucial for businesses procuring or using these components to have advanced knowledge about their functionalities and quality standards. By partnering with reliable elevator parts manufacturers like Zetwerk, businesses can ensure they have access to high-quality components that meet industry standards while enhancing efficiency and safety.
Zetwerk offers a wide range of manufacturing services including fabrication, casting, forging, and surface treatment. With Zetwerk’s expertise and capabilities, businesses can procure reliable and high-quality components for their elevator manufacturing needs. Explore Zetwerk’s Knowledge Hub for more related articles.
FAQs
Elevator car components are customized based on project requirements like size, design aesthetics, load capacity, and safety regulations. Elevator parts manufacturers use advanced manufacturing techniques to create bespoke components that meet specific project needs.
Elevators can have various door systems such as single slide doors, two-speed side opening doors, single-speed center opening doors, or two-speed center opening doors. The choice depends on factors like space availability, traffic flow patterns, and building design.
Common materials used for elevator car floors include PVC, granite, marble stone, or personalized options based on client preferences. For car ceilings, materials like stainless steel panels or powder-coated aluminum are often used due to their durability and aesthetic appeal.
Safety systems in elevators include safety brakes that engage with metal teeth embedded in guide rails to prevent the elevator car from crashing in case of cable failure. Safety devices also activate during emergencies or speed limit violations to protect passengers.
The control system plays a vital role in energy efficiency by regulating the operation of the elevator motor and other components based on real-time demand. Advanced control algorithms optimize power consumption while maintaining smooth performance and passenger comfort.
