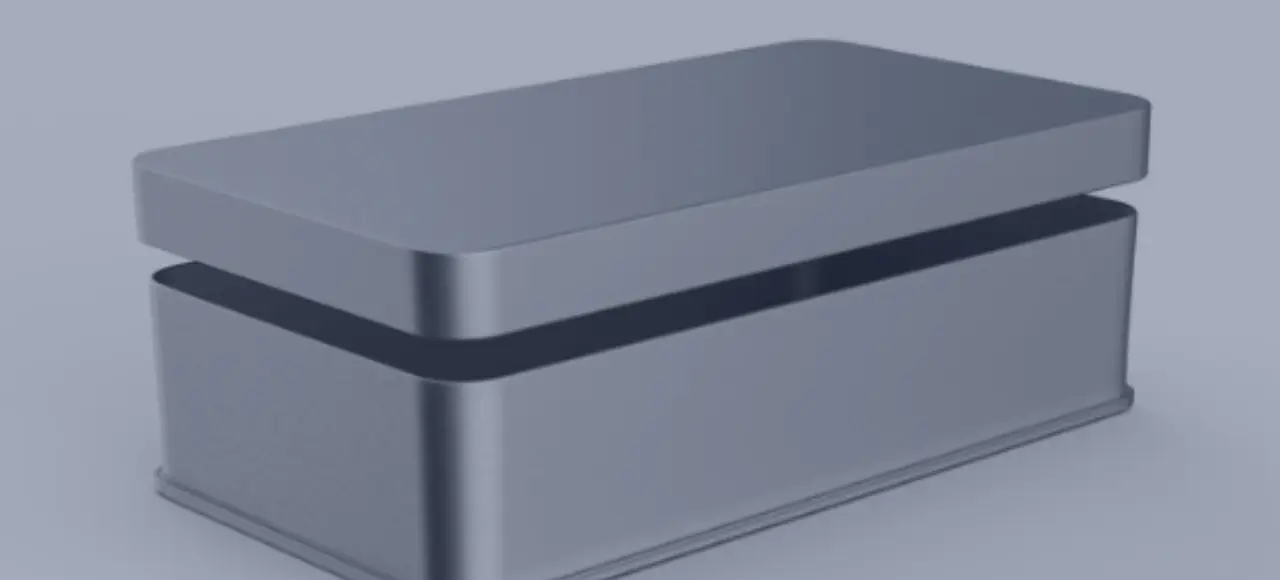

Aluminum enclosures provide lightweight yet durable protection for electronic components and devices, offering corrosion resistance and customization options.
Design considerations for aluminum enclosures: A Comprehensive Guide
Aluminum enclosures play a critical role in safeguarding sensitive components across industries. Their design requires meticulous attention to technical details to ensure optimal performance and durability. Here’s a breakdown of the key points to consider:
Zetwerk provides high-quality aluminum enclosures and all secondary operations.
Submit the relevant part drawings, 3D files, and other information by clicking on the button below.
- Environmental conditions and corrosion mitigation: Account for humidity, temperature fluctuations, chemicals, and outdoor exposure. Apply anodization, coatings, or finishes to enhance corrosion resistance without compromising aesthetics.
- Manufacturability and assembly efficiency: Balance functionality with ease of manufacture and assembly. Simplify designs, incorporate modular components, and use efficient fastening mechanisms to streamline production.
- Customization and versatility: Embrace modularity and versatility to cater to diverse application requirements. Integrate interchangeable panels, modular components, and adaptable mounting solutions.
- EMI grounding and bonding: Properly ground and bond enclosure components to minimize EMI risks. Ensure a low-impedance path for electrical currents to prevent unwanted interference.
- Fastening and accessibility: Select appropriate fasteners and hinges for easy access to internal components during maintenance or repairs. Balancing security and accessibility ensures efficient servicing.
- Impact resistance and durability: Optimize enclosure geometry to distribute impact forces and protect internal components. Use materials with high impact resistance in areas prone to physical stress.
- Labels and Markings: Incorporate spaces for labels, logos, and user instructions on the enclosure’s exterior. These are crucial for branding and user guidance.
- Material selection: Aluminum alloy grades: Choose appropriate aluminum alloy grades based on mechanical properties, corrosion resistance, and weldability. Common choices include 6061 and 5052, but specific applications might require 6063 or 5083. Align alloy selection with the enclosure’s intended use and environmental conditions.
- Mechanical design for structural integrity: Perform finite element analysis (FEA) to assess stress distribution and identify weak points. Integrate structural reinforcements, ribs, and optimized wall thickness for superior strength under external forces.
- Aesthetic considerations and brand identity: Enhance user satisfaction and brand recognition by focusing on aesthetics. Choose surface finishes, textures, and design elements that align with the brand’s identity.
- Cost-effectiveness analysis: Conduct thorough cost-benefit analyses to evaluate the justification for aluminum enclosures. Consider material costs, manufacturing complexity, and long-term maintenance expenses.
- Modular cable management: Design cable routing channels and clips to manage internal wiring neatly. Efficient cable management prevents interference and simplifies future modifications.
- Noise reduction: Integrate sound-absorbing materials or design features to reduce noise generated by enclosed equipment. Addressing acoustic concerns is crucial, especially in applications where noise can be disruptive.
- Environmental regulations and compliance: Familiarize yourself with industry-specific regulations & standards for materials, coatings, and finishes. The enclosure’s design adheres to relevant compliance requirements.
- Ventilation and cooling: Incorporate strategically placed ventilation slots or perforations to facilitate airflow. Ensure effective cooling without compromising the enclosure’s protective properties.
- Thermal expansion and contracting: Account for the coefficient of thermal expansion of aluminum to prevent issues arising from temperature changes. Design enclosure joints and fasteners to accommodate expansion and contraction without compromising structural integrity.
Production considerations
Fabrication techniques
- Utilize various methods based on design complexity and production volume.
- CNC machining: Ideal for intricate designs and tight tolerances.
- Extrusion: Cost-effective for consistent cross-sections and longer lengths.
- Sheet metal fabrication: Versatile for both simple and complex enclosures.
- Die casting: High-volume production of intricate shapes with minimal post-processing.
Surface treatment and finishing:
- Anodizing: Enhances corrosion resistance, offers color options, and improves scratch resistance.
- Powder coating: Provides uniform, durable finish with corrosion protection in various colors.
- Chemical conversion coating: Enhances corrosion resistance and provides base for painting.
- Quality control and testing: Implement stringent quality control measures to ensure enclosures meet specifications and requirements. Conduct dimensional checks, pressure tests, corrosion resistance evaluations, and other relevant tests. Ensuring high quality guarantees the reliability and longevity of aluminum enclosures.
- Tolerances and fit: Define precise tolerances for components and assemblies to ensure proper fit and alignment. Tight tolerances prevent gaps, misalignments, and suboptimal performance.
- Corrosion prevention: Select appropriate surface treatment methods like anodizing or coating to enhance corrosion resistance, vital for enclosures used in harsh environments.
- Assembly Techniques: Plan efficient assembly processes that minimize human error and maximize productivity. Consider techniques like snap-fit designs or integrated fasteners to simplify assembly. Incorporate features like removable panels or hinged access points.
- Batch Production: Plan for batch production to optimize manufacturing efficiency while maintaining product consistency.
- Lead Times: Consider lead times for material procurement, manufacturing, and finishing processes to meet project timelines.
- Material Waste Reduction: Optimize material usage to minimize waste during fabrication, contributing to cost efficiency and sustainability.
- Weight Considerations: Evaluate enclosure weight in relation to the application, considering factors like portability, mounting requirements, and load-bearing capacity.
- Prototyping and Iteration: Invest in prototyping to identify potential design flaws and refine the enclosure before mass production. Iterative testing ensures a final product that meets or exceeds expectations.
- Packaging and Shipping: Design packaging that protects the enclosures during transportation, reducing the risk of damage.
- Ventilation and Airflow: Integrate strategic ventilation openings or channels to facilitate adequate airflow, preventing overheating of enclosed components. Balancing airflow with environmental protection is crucial for optimal performance.
- Mounting Options: Design enclosures with versatile mounting options such as wall-mounting brackets, DIN rails, or rack-mount compatibility to accommodate various installation needs.
- Welding Techniques: If welding is required, choose the appropriate welding technique, such as TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas), based on the aluminum alloy and design complexity. Welding must ensure strong joints without compromising the structural integrity of the enclosure.
- Fastener Selection: Choose fasteners (screws, nuts, bolts) that are compatible with aluminum and the enclosure’s intended use. Opt for corrosion-resistant fasteners to prevent galvanic corrosion between dissimilar metals.
- ESD Protection: Incorporate electrostatic discharge (ESD) protection features if the enclosure houses sensitive electronic components. ESD coatings or grounding mechanisms prevent static electricity from damaging components.
- Water and Dust Ingress Prevention: If the enclosure is exposed to outdoor or dusty environments, incorporate seals, gaskets, and specialized coatings to prevent water and dust ingress.
- User Safety Features: Integrate safety features like locking mechanisms, tamper-evident seals, or emergency shutdown switches based on the intended application and user needs.
Extruded aluminum enclosures
An extruded aluminum enclosure is a protective casing crafted through a manufacturing process where aluminum is heated and pushed through a die to form a consistent shape. This method allows for versatile designs and features like heat-dissipating fins. Aluminum’s advantages, such as its lightweight nature, excellent heat conduction, and corrosion resistance, make it an ideal choice for enclosing electronic components or machinery. These enclosures find use in various industries due to their durability, modern appearance, and ability to safeguard equipment from environmental factors and physical harm.
Aluminum screen enclosures
Aluminum screen enclosures are protective structures made from aluminum framing and mesh screening, designed to create a shielded outdoor space while maintaining visibility and airflow. The aluminum framework provides durability and resistance against weather conditions, while the mesh screens keep out insects and debris. These enclosures are commonly used for patios, porches, and pool areas, offering a comfortable outdoor environment while effectively preventing unwanted pests from entering.
In essence, the design and production of aluminium enclosures require a meticulous balance between functionality, aesthetics, and practicality. By addressing the key points discussed, manufacturers and designers, like Zetwerk, can create enclosures that excel in protecting components, adapting to environments, and contributing to overall product success. These enclosures transcend their roles, becoming integral components that embody durability, performance, and visual appeal.
FAQs
Consider the environment where the enclosure will be used (dust, water exposure), and refer to IP rating standards to select the suitable level of protection.
Yes, combining ventilation holes, heat sinks, and fans can enhance heat dissipation, maintaining optimal component temperatures.
Techniques like hydroforming or deep drawing are suitable for achieving intricate enclosure forms with minimal material distortion.
Design specialized fixtures and jigs that aid in accurate component alignment and secure assembly, ensuring uniform product quality.
While aluminium 3D printing is less common, you can use it for rapid prototyping or for creating complex internal components, which can then be integrated into the main enclosure
