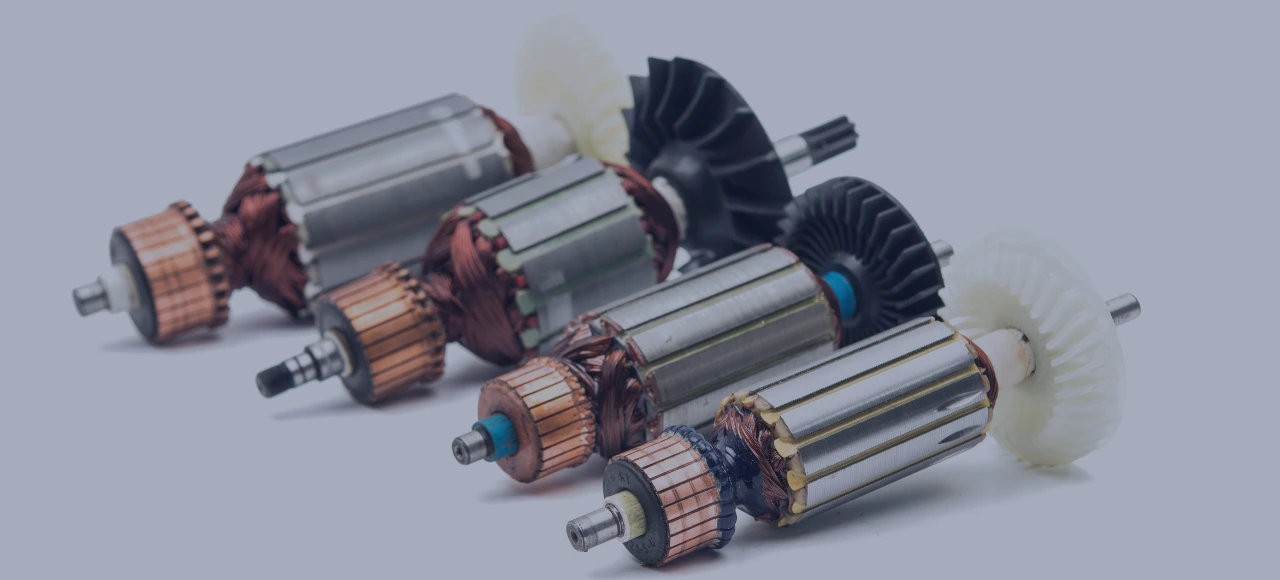

Advancements in Electric Motor Rotor Lamination Materials

Introduction

Electric motors play a crucial role in various industries, powering everything from appliances to automobiles. To ensure optimal performance and energy efficiency, electric motors rely on motor laminations. These thin layers of specialized metal alloys sheet, typically electrical steel, are stacked together to form the core of the motor. The advancements in electric motor rotor lamination materials have revolutionized the industry by improving efficiency, reducing losses, and enhancing overall energy savings.

In this comprehensive article, we will dive deep into the topic of electric motor rotor lamination materials. Catering to industry professionals, we will explore the various advancements in materials. We will also discuss their benefits, applications, challenges faced during manufacturing processes, and potential future advancements.

Different Types of Rotor Lamination

Thin-Gauge Silicon Iron for Higher Power Density

• One significant advancement in electric motor rotor lamination materials is the use of thin-gauge Silicon Iron (Si-Fe). This material offers several efficiency benefits over conventional lamination materials and thicknesses. Thin-gauge Si-Fe laminations achieve higher power density by minimizing energy loss through eddy currents.
• Eddy currents are circulating currents induced within the motor by the alternating magnetic field. By stacking thin laminations with an insulating material in between, the flow of eddy currents is greatly reduced.
• Furthermore, thin-gauge Si-Fe laminations exhibit optimal magnetic properties that enhance energy savings and improve overall motor performance. The lower losses achieved with these materials result in improved efficiency and allow for greater output with a given electrical input.

Grain-Oriented Electrical Steel for Higher Frequency Applications

• When it comes to higher frequency applications, grain-oriented electrical steel (GOES) has become a popular choice for electric motor rotor laminations. GOES offers enhanced magnetic properties along the rolling direction, making it suitable for applications where thinner materials reduce core losses due to eddy currents.
• Eddy currents tend to increase with higher frequencies, leading to increased power losses in motor cores. However, by utilizing GOES laminations, which are carefully processed to align the grains in a specific direction, the core losses can be significantly reduced. The reduction in core losses not only enhances motor efficiency but also improves saturation flux density.

Non-Grain-Oriented Electrical Steel for Rotating Machinery

• In applications where rotating machinery operates above 400 Hz, non-grain-oriented electrical steel (NGOES) has emerged as a viable option for electric motor rotor laminations. NGOES offers high permeability, allowing for improved saturation and reduced hysteresis loss.
• Unlike GOES, NGOES does not require grain orientation and exhibits low coercivity along with a hysteresis curve shape that reduces hysteresis loss in rotating machinery. This makes it an ideal choice for motors or generators operating at higher frequencies.

The Efficiency Benefits of Thin-Gauge Silicon Steels

The thickness of electric motor rotor lamination materials plays a crucial role in overall efficiency. Thin and ultra-thin gauge Silicon Steels offer several advantages over conventional lamination materials. Compared to conventional materials, thin and ultra-thin gauge Silicon Steels exhibit lower core losses, reduced energy loss due to eddy currents, and improved performance. These materials are designed with optimal magnetic properties that contribute to enhanced motor efficiency.

Challenges and Promising Methods with Amorphous Metals

• Amorphous metals have garnered significant attention in the manufacturing of electric motor rotor laminations due to their superior magnetic properties. These metals offer very high permeability, a square hysteresis loop, and an oxide layer on the surface that provides electrical insulation for low eddy current losses.
• However, manufacturing amorphous metal laminations presents several challenges. The extreme thinness (25 microns) and high hardness of amorphous metals make them difficult to process into traditional motor structures. Additionally, stacking numerous layers of amorphous metal ribbons can lead to potential shorts between laminations.
• Various methods have been attempted to construct motors using amorphous materials, including cutting and stacking laminations, winding coils and cutting away sections, winding partial shapes and assembling them into a final structure, or cutting shapes into strips and winding them into the desired motor shape.
• One promising method involves utilizing waterjet cutting techniques to construct axial motor stators from wound conical forms of amorphous metal ribbons. This method shows potential in overcoming the challenges associated with handling thin and hard amorphous materials.

Future Advancements and Market Adoption

• The future holds exciting advancements in electric motor rotor lamination materials. Research is underway to develop improved formulations of amorphous metals that offer higher saturation flux density while maintaining low core losses.
• Additionally, advancements in manufacturing technologies such as direct shape helical casting or roll-to-roll shaping and processing are expected to further enhance the production of amorphous metals for electric motor rotor laminations.
• Despite the potential of amorphous metals for superior motor performance, challenges in manufacturing processes and market adoption hinder widespread commercial use. The ability to produce cost-effective, reliable, and efficient motors using amorphous metal laminations remains a goal for the industry.

Key Takeaways

Advancements in electric motor rotor lamination materials have revolutionized the manufacturing industry by improving efficiency, reducing losses, and enhancing overall energy savings. Thin-gauge Silicon Iron (Si-Fe), grain-oriented electrical steel (GOES), non-grain-oriented electrical steel (NGOES), and amorphous metals offer unique benefits that cater to various motor design requirements.
