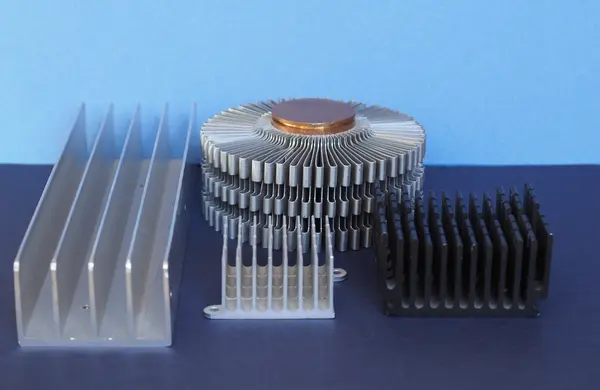

Heat sinks are crucial in dissipating excess heat from electronic devices, preventing them from overheating and ensuring optimal performance. Various heat sink types have emerged with technological advancements, each offering unique features and benefits. This article will explore different heat sink types and designs and help you determine which is best suited for your project.
Six Types of Heat Sinks and Their Uses
Extruded Heat Sinks
Overview
Extruded heat sinks are among the most commonly used types due to their simplicity and cost-effectiveness. They are typically made from aluminum and are created by pushing the material through a mold, resulting in a long, continuous profile.
Pros:
- Cost-effective: Extruded heat sinks are budget-friendly, making them a popular choice for mass-produced electronics.
- Versatile: They come in various shapes and sizes to suit different applications.
- Ease of customization: Extruded heat sinks can be easily tailored to specific requirements by altering their length, fins, and surface area.
Cons:
- Limited thermal performance: Extruded heat sinks are less efficient than some other types when it comes to dissipating high levels of heat.
- Not ideal for compact spaces: Their elongated design may not fit well in tight spaces.
Characteristics:
- Typically made from aluminum or aluminum alloys.
- Long, continuous profiles with fins for increased surface area.
- Available in a variety of shapes and sizes.
Applications:
- Consumer electronics (e.g., laptops, LED lights)
- Industrial equipment
- Power supplies
Zetwerk provides high-quality Precision Parts and all secondary operations.
Submit the relevant part drawings, 3D files, and other information by clicking on the button below.
CNC Machined Heat Sinks
Overview
CNC (Computer Numerical Control) machined heat sinks are precision-crafted using machines controlled by computers. This process allows for intricate designs and precise tolerances.
Pros:
- High precision: CNC machining ensures precise and consistent dimensions, making them suitable for applications with tight tolerances.
- Excellent thermal performance: These heat sinks offer superior thermal conductivity, making them ideal for high-power applications.
- Customization: Complex and unique shapes can be easily achieved with CNC machining.
Cons:
- Higher cost: The precision and quality of CNC machined heat sinks come at a higher price point.
- Longer production time: The machining process can be time-consuming.
Characteristics:
- Precision-crafted from materials like aluminum, copper, or other alloys.
- Can have complex and intricate designs.
- Excellent thermal conductivity.
Applications:
- High-performance CPUs and GPUs
- Laser diodes
- Aerospace and defense systems
Stamped Heat Sinks
Overview
Stamped heat sinks are manufactured by stamping flat metal sheets into desired shapes, typically using a press. This cost-effective method is suitable for producing large quantities of heat sinks quickly.
Pros:
- Cost-effective for large volumes: Stamping is efficient for mass production, reducing per-unit costs.
- Lightweight: Stamped heat sinks are relatively lightweight, making them suitable for weight-sensitive applications.
- Quick production: The stamping process is rapid and ideal for meeting tight deadlines.
Cons:
- Limited complexity: Stamped heat sinks are less versatile in terms of shape and design compared to CNC-machined options.
- Lower thermal performance: They may not be the best choice for high-power applications.
Characteristics:
- Manufactured by stamping metal sheets.
- Simple shapes and designs.
- Cost-effective for mass production.
Applications:
- Automotive electronics
- Consumer electronics
- LED lighting fixtures
Skived Heat Sinks
Overview
Skived heat sinks, also known as skiving or knife-fin heat sinks, are produced by removing material from a solid block using a blade or knife. This process creates fins that aid in heat dissipation.
Pros:
- Excellent thermal performance: Skived heat sinks offer outstanding thermal conductivity and are capable of efficiently dissipating high levels of heat.
- Compact design: They are well-suited for applications with limited space due to their compact and efficient design.
- Reduced weight: Skived heat sinks are lighter than some other options, making them suitable for weight-sensitive projects.
Cons:
- Complex production process: The skiving process can be more labor-intensive and time-consuming than other methods.
- Higher cost: Achieving the precision required for skived heat sinks can make them more expensive.
Characteristics:
- Produced by removing material from a solid block.
- Compact and efficient design with fins.
- Excellent thermal conductivity.
Applications:
- High-performance laptops and ultrabooks
- LED displays
- Medical devices
Machining Heat Sinks
Overview
Machining heat sinks, often referred to as milled heat sinks, are created by removing material from a solid block using cutting tools. This process allows for precise shaping and customization.
Pros:
- High precision: Machining ensures accurate dimensions and tight tolerances, suitable for specialized applications.
- Superior thermal performance: These heat sinks offer exceptional thermal conductivity, making them ideal for demanding thermal solutions.
- Customizable: Complex designs and unique shapes can be easily achieved with machining.
Cons:
- Higher cost: The precision and quality of machining come at a premium price.
- Longer production time: The machining process can be time-consuming.
Characteristics:
- Crafted by removing material from a solid block.
- Highly customizable with precise dimensions.
- Excellent thermal conductivity.
Applications:
- High-end gaming computers
- Data center servers
- Telecommunications equipment
Bonded Heat Sink
Overview
Bonded heat sinks are composed of a base material, typically aluminum or copper, and a separate heat-dissipating material, often copper or aluminum fins. These two components are bonded together to create an effective cooling solution.
Pros:
- Versatile: Bonded heat sinks allow for the combination of different materials to optimize thermal performance.
- Customizable: The choice of materials and bonding methods can be tailored to specific requirements.
- Cost-effective: Compared to fully machined or skived heat sinks, bonded versions can be more budget-friendly.
Cons:
- Thermal resistance: The bonding interface can introduce some thermal resistance, reducing overall performance compared to a single-piece design.
- Complex design and assembly: Creating bonded heat sinks can be more intricate and time-consuming.
Characteristics:
- Composed of a base material and separate heat-dissipating material bonded together.
- Versatile and customizable.
- Cost-effective compared to fully machined or skived options.
Applications:
- Power Electronics
- Automotive power modules
- Renewable energy systems
Choosing the Ideal Heat Sink for Your Project
The choice of heat sink type for your project should be based on your specific requirements, budget constraints, and space limitations. Each type offers its own set of advantages and disadvantages, allowing you to tailor your heat dissipation solution to your unique needs. Whether you prioritize cost-effectiveness, thermal performance, or precision, understanding these six heat sink types will empower you to make informed decisions and optimize the performance and reliability of your electronic projects.
For high-quality heat sinks and other precision-engineered components, Zetwerk is a leading manufacturing partner. With expertise in various manufacturing processes, Zetwerk delivers innovative solutions tailored to your project’s needs. Visit Zetwerk’s knowledge base on aluminum extrusions to learn more.
FAQs
Heat sinks primarily dissipate excess heat from electronic devices to prevent overheating and maintain optimal performance.
Heat sinks are essential for electronic devices that generate significant heat during operation. They help prolong the lifespan of the devices and prevent performance issues.
It is possible to combine different heat sink types to achieve better overall thermal management. This approach is often used in applications with high heat dissipation requirements.
Some important factors to consider when selecting a heat sink include thermal conductivity, surface area, airflow, size, weight, and cost.
