Aluminum sand casting is a widely used manufacturing process that allows for the production of intricate and complex components. It involves pouring molten aluminum into a mold made of sand to create the desired part. This method offers numerous benefits, including its versatility in producing parts with complex geometries. Professionals in the manufacturing industry can greatly benefit from understanding the advanced-level information about aluminum sand casting. In this article, we will explore the various methods, benefits, and best practices associated with this process to help businesses achieve high-quality castings efficiently.
About Aluminum Sand Casting
Aluminum sand casting is a highly versatile manufacturing process used to produce components with intricate geometries. The process involves several steps, starting with pattern creation where a model of the desired component is made. The next step is mold making, where the pattern is placed in a box filled with sand called a flask.
The sand can be of different types such as dry sand, resin sand, sodium silicate or water glass, and green sand. Once the mold is created, molten aluminum is poured into it through gates and risers. After solidification, the casting is removed from the mold by breaking it apart.
The advantage of using sand as a mold material is its ability to create complex shapes without specialized tooling constraints. Additionally, multiple molds can be produced from one pattern, allowing for efficient batch production.
Zetwerk provides high-quality Aluminum Casting Components and all secondary operations.
Submit the relevant part drawings, 3D files, and other information by clicking on the button below.
Selecting the Right Aluminum Alloy
Selecting the appropriate alloy for aluminum sand casting plays a crucial role in achieving successful castings. Different alloys offer varying properties such as strength, corrosion resistance, and thermal conductivity. It’s essential to consider specific project requirements when choosing an alloy.
The most commonly used aluminum alloys for casting include Aluminum Association (AA) alloys such as AA356 and AA357. These alloys offer excellent castability and mechanical properties, making them suitable for a wide range of applications. Other popular alloys include A356, A357, and 319.
It is important to consult with experienced professionals or material suppliers to determine the most suitable alloy for each specific application. They can provide valuable insights into the performance characteristics of different alloys and help businesses make informed decisions.
Advantages of Aluminum Sand Casting
- Versatility in Design: Aluminum sand casting allows for intricate designs and complex shapes, offering versatility in creating various components.
- High Strength-to-Weight Ratio: It provides exceptional strength while being relatively lightweight, making it ideal for applications requiring both durability and reduced weight.
- Cost-Effectiveness: Aluminum is abundant, making the sand casting process cost-effective for large production runs without compromising quality.
- Thermal Conductivity: Aluminum’s excellent thermal conductivity makes it suitable for parts requiring efficient heat dissipation or thermal management.
- Corrosion Resistance: Aluminum’s natural resistance to corrosion makes it a favorable choice for components subjected to harsh environments or outdoor conditions.
- Recyclability: Being highly recyclable, aluminum sand casting aligns with sustainable practices, promoting environmental friendliness and resource conservation.
Best Practices for Mold Design
Proper mold design is crucial in achieving successful aluminum sand castings. It ensures that the molten aluminum flows smoothly into the mold and reduces the risk of defects such as porosity.
When designing a mold, it is important to consider factors such as ventilation and robustness. Good ventilation allows gases to escape during pouring, preventing gas-related defects. Robust molds can withstand the stresses imposed during the casting process without distortion or failure.
Investing time in designing well-maintained molds is essential to avoid distorted patterns that result in defective parts. Regular inspection and maintenance of patterns ensure their accuracy and consistency over time.
Additionally, computer-aided design (CAD) software can be used to simulate the filling process and identify potential issues before manufacturing begins. This enables designers to optimize mold designs for maximum efficiency and quality.
Controlling Mold Temperature
Controlling mold temperature is critical in achieving high-quality aluminum sand castings. Consistent temperature throughout the mold promotes uniform solidification, reducing internal stresses and minimizing defects such as cracks or distortions.
By closely monitoring and controlling mold temperatures, manufacturers can achieve consistent casting results and reduce scrap rates. This improves overall productivity and cost-effectiveness of the manufacturing process.
Optimizing Sand Mixture
Achieving precise molds in aluminum sand casting requires using the right mixture of sand, clay, and moisture content. The sand mixture should be properly compacted around the pattern to ensure accuracy and reduce defects.
Manufacturers may also consider using additives or binders to enhance mold strength or improve collapsibility for easier removal of the casting. However, it is important to carefully evaluate these additives to ensure they do not negatively affect the quality of the final castings.
Gating and Risering System Design
Proper gating and risering designs play a crucial role in controlling molten aluminum flow during casting and minimizing defects such as shrinkage. These designs direct molten metal into the mold cavity while ensuring proper feeding of metal to compensate for shrinkage during solidification.
Consulting with experts or utilizing computer simulations can help businesses design efficient gating systems. Factors such as sprue location, runner size, riser placement, and venting are carefully considered during this process.
By optimizing gating and risering designs, manufacturers can significantly improve casting yield and reduce scrap rates.
Safety Measures and Post-Casting Treatments
Safety measures are of utmost importance when working with molten aluminum in sand casting. Proper handling procedures and the use of appropriate personal protective equipment (PPE) are essential to ensure the safety of operators.

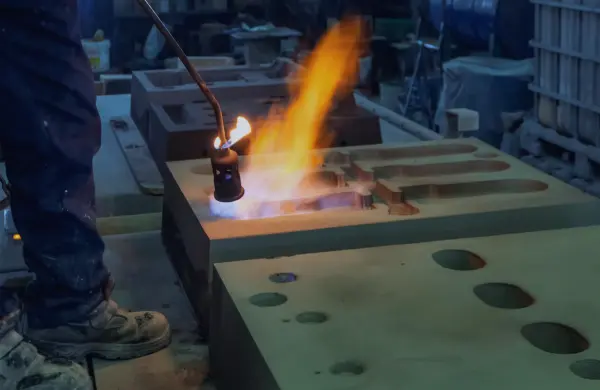

Preheating the mold before pouring molten aluminum helps reduce the risk of thermal shock, which can lead to defects like cracking or distortion.
Post-casting treatments may be necessary based on project requirements. Heat treatment processes can be employed to improve mechanical properties or impart specific characteristics to the castings. Additionally, fluxes can be used during pouring to remove impurities from the molten metal and enhance overall casting quality.
Rigorous quality control processes should be implemented throughout the manufacturing process. This includes inspection of castings for defects, dimensional accuracy checks, and adherence to established standards and specifications.
Final Thoughts
In conclusion, applying best practices in aluminum sand casting is crucial for achieving high-quality castings that meet project requirements efficiently. Key considerations include selecting the right alloy, designing molds with proper ventilation and robustness, controlling mold temperature, optimizing sand mixture properties, designing efficient gating systems, implementing safety measures, and considering post-casting treatments when necessary.
By following these best practices, businesses can produce complex components with intricate geometries while minimizing defects and improving overall productivity. As professionals in the manufacturing industry strive for efficiency and quality in their products, knowledge of advanced-level information related to aluminum sand casting becomes increasingly essential.
For high-quality aluminum sand castings that meet your project requirements, explore Zetwerk manufacturing services. With a wide range of capabilities including precision machining, fabrication, casting, forging, and more.
FAQs
Limitations include lower surface finish compared to other processes, variable dimensional accuracy and repeatability, disposal issues with contaminated sand waste, potential pattern degradation as production scales, variability in microstructure anisotropy due to uncontrolled cooling rates, and the need for skilled labor for non-automated production.
Sand casting is commonly used in industries such as automotive, aerospace, construction, mining, agriculture, marine, sports equipment, and recreational equipment due to its versatility in producing a wide range of metal parts with low porosity and beneficial properties.
The durability and lifespan of properly designed and manufactured sand cast parts depend on factors such as design considerations, material selection, appropriate manufacturing processes used. They can have long lifespans when these aspects are taken into account.
Eco-friendly practices in aluminum sand casting include minimizing waste generation by efficient mold design and optimization techniques such as using reclaimed molding sands or chemically bonded cores that reduce waste generation compared to traditional core-making methods. Recycling scrap metals also contributes to sustainability efforts.
